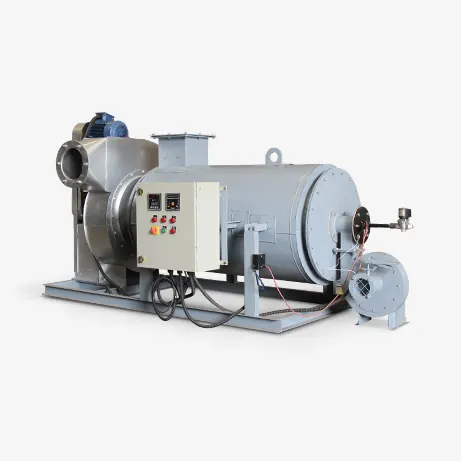

“Hot Air Generator” the word itself sounds that it generates hot air. Hot air generators are widely known as “HAG”. HAG is used to heat up atmospheric air or processed air to reach desired temperature. These are widely used in most of the industries. HAG are of direct or indirect type.
Indirect Air Heaters will deliver clear uncontaminated hot air. This will avoid the use of any intermediary heating media such as Steam, Hot Water or Thermic Fluid.

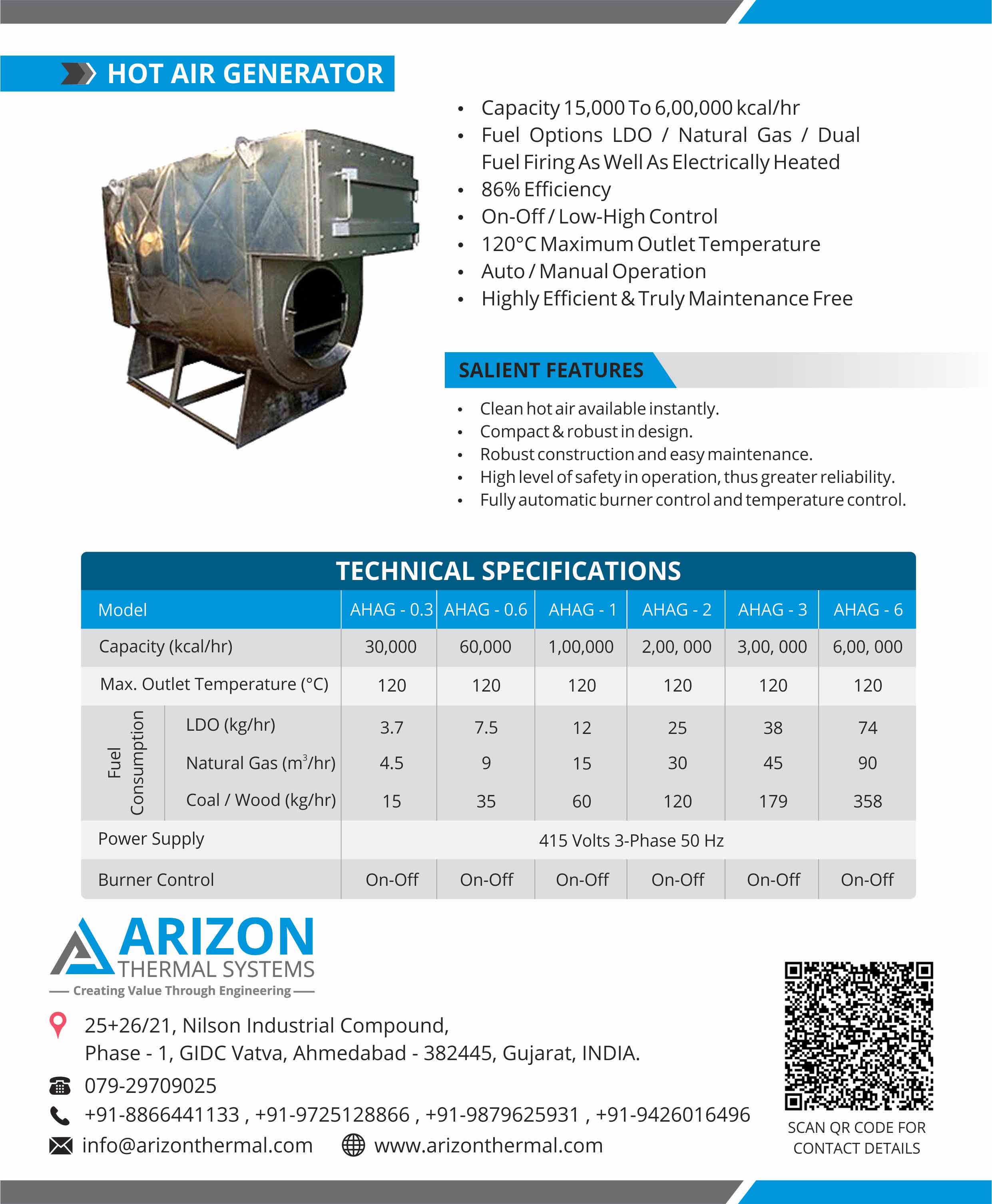

HOT AIR GENERATOR |
|||||||||
| MODEL | AHAG-0.3 | AHAG-0.6 | AHAG-1 | AHAG-2 | AHAG-3 | AHAG-6 | |||
| CAPACITY (kcal/hr) | 30,000 | 60,000 | 1,00,000 | 2,00,000 | 3,00,000 | 6,00,000 | |||
| MAXIMUM AIR OUTLET TEMPERATURE (°C) | 120 | 120 | 120 | 120 | 120 | 120 | |||
| FUEL CONSUMPTION | |||||||||
| LDO (kg/hr) | 3.7 | 7.5 | 12 | 25 | 38 | 74 | |||
| NATURAL GAS (m³/hr) | 4.5 | 9 | 15 | 30 | 45 | 90 | |||
| COAL / WOOD (kg/hr) | 15 | 35 | 60 | 120 | 179 | 358 | |||
| POWER SUPPLY | 415 VOLTS 3-PHASE 50 Hz | ||||||||
| BURNER CONTROL | ON - OFF | ON - OFF | ON - OFF | ON - OFF | ON - OFF | ON - OFF | |||
