Hot Water Generator

Hot Water Generator is a well-organized and lucrative way to generate hot water instantly. It is designed exclusively for the hot water requirements at Hotels, Hospitals, Resorts, Swimming pools, Dairies, Laundries and various other process industries.


Arizon Thermal Systems offers Hot Water Generators fired by extensive range of fuels. Hot Water Generators are available in both Solid Fuel firing as well as LDO / Gas / Dual Fuel firing variants so that you get the advantage of economically available fuels.

Product description:

SPECIFICATIONS

  • Capacity range from 50,000 kcal/hr to 20,00,000 kcal/hr
  • Fuel options LDO / Natural Gas / LPG / Coal / Wood / Briquettes / Pallets / Electricity
  • Auto / Manual operation
  • Control on-off / Two Stage (Low-High)
  • 86% efficiency for LDO/GAS fired & 76% for Solid Fuel fired
  • 90°C maximum hot water outlet temperature
  • 120°C maximum hot water outlet temperature through pressurised system
  • Inhouse burner manufacturing with modes of pressure jet type, fully automatic etc.

SALIENT FEATURES

  • Efficient Heat Transfer with optimum combustion
  • Three Pass Design for LDO / GAS fired
  • Three Pass as well as four pass Design for solid fuel fired
  • Reduced excess air with balanced Draft System
  • Truly maintenance Free
  • Easy access for inspection & cleaning
  • Energy Efficient
  • Fully automatic in operation, so no running attention required
  • Pre-heated combustion air is an integral part of the design giving accurate & complete combustion
  • Large furnace volume, high radiant heat transfer area & high convective heat transfer area ensures long life of Hot Water Generators
  • Robust & reliable components with optimum maintenance for blower, pump & other controls
  • Easy access to all parts for maintenance
  • Powder coated control panel with systematic wiring layout with ferrule numbers etc. for easy trouble shooting as well as for better performance

CONTROLS AND SAFETIES

  • Interlock for water circulation pump
  • Motor trip indication lamp on control panel
  • Low level in water supply tank
  • High hot water supply as well as return temperature
  • Separate pressure switch for low flow / no flow & high pressure
  • Flame monitor through LDR / UV Cell
HOT WATER GENERATOR
MODEL AHW-10 AHW-20 AHW-30 AHW-40 AHW-60 AHW-80 AHW-100 AHW-150 AHW-200
CAPACITY (kcal/hr) 1,00,000 2,00,000 3,00,000 4,00,000 6,00,000 8,00,000 10,00,000 15,00,000 20,00,000
MAXIMUM OUTLET TEMPERATURE (°C) 90 90 90 90 90 90 90 90 90
FUEL CONSUMPTION
LDO (kg/hr) 11.4 22.8 33.8 45 67.6 92 113 169 229
NATURAL GAS (m³/hr) 14 28 42 56 84 110 140 205 274
COAL / WOOD (kg/hr) 35 70 100 133 200 267 330 498 670
Water Circulating Pump 5 hp 7.5 hp 10 hp 15 hp 15 hp 20 hp 20 hp 30 hp 40 hp
I.D.Fan 2 hp 2 hp 3 hp 5 hp 7.5 hp 10 hp 10 hp 20 hp 30 hp
F.D.Fan (with coal fired) - 2 hp 2 hp 2 hp 3 hp 5 hp 7.5 hp 10 hp 15 hp
CONTROL ON - OFF ON - OFF ON - OFF ON - OFF ON - OFF ON - OFF ON - OFF ON - OFF ON - OFF
POWER SUPPLY 415 VOLTS 3-PHASE 50 Hz

APPLICATIONS

Our hot water generators are ideal for use in a variety of industries, including:

  • Dyes, Chemicals and Intermediates
  • Textiles Industries
  • Packing
  • Refineries
  • Hotels
  • Resorts
  • Swimming pools
  • Hospitals
  • Laundries
  • Dairies
  • Gyms
  • Tyre manufacturing industries
  • Petroleum industries
  • Pharmaceutical & drugs
  • Food processing
  • Ceramic Industries
  • Pipes & Tubes manufacturing units
  • Road construction equipments
  • Plastic industries
  • Reactor vessel heating, Jacketed vessel heating, Autoclaves & tank heating

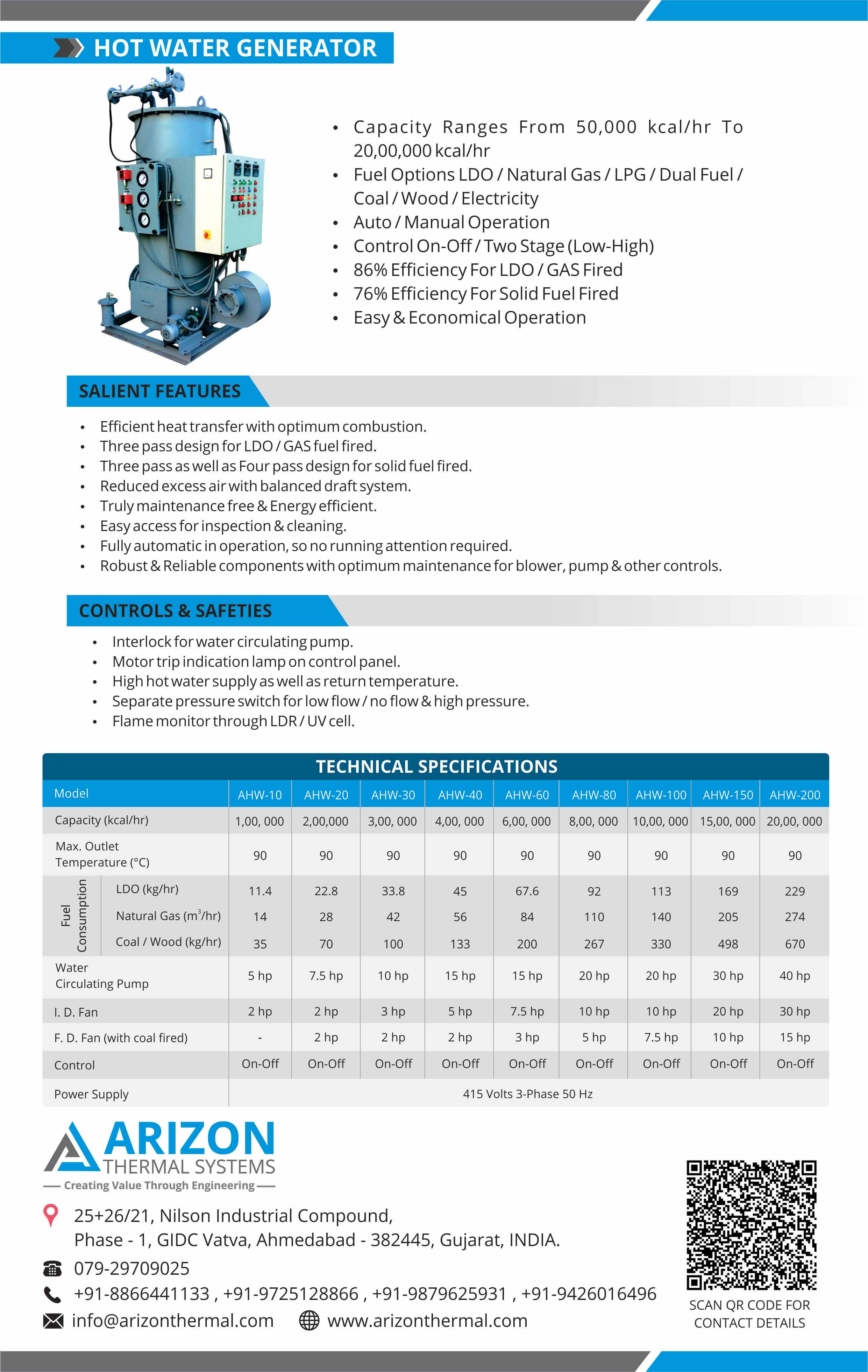

Download PDF View Image
